噴嘴J021配件 SPARE PARTS FOR NOZZLES

產品目錄 / 假撚 / 空氣假撚噴嘴 / 噴嘴J021配件

New release (safe key included)

Air Jet Nozzle

OPEN/CLOSED TYPE

配有安全卡榫，避免操作不當使噴嘴芯滑出。

採用OPEN/CLOSED型式，操作方便。

噴嘴主體(INSERT)為精密陶瓷材質，延長壽命。

噴嘴紗道(CHANNEL)進氣孔(ORIFICE)可依需要纏結個數及纏結牢度，有多種型式可選擇，進而可提升機台速度、效率及布面品質。

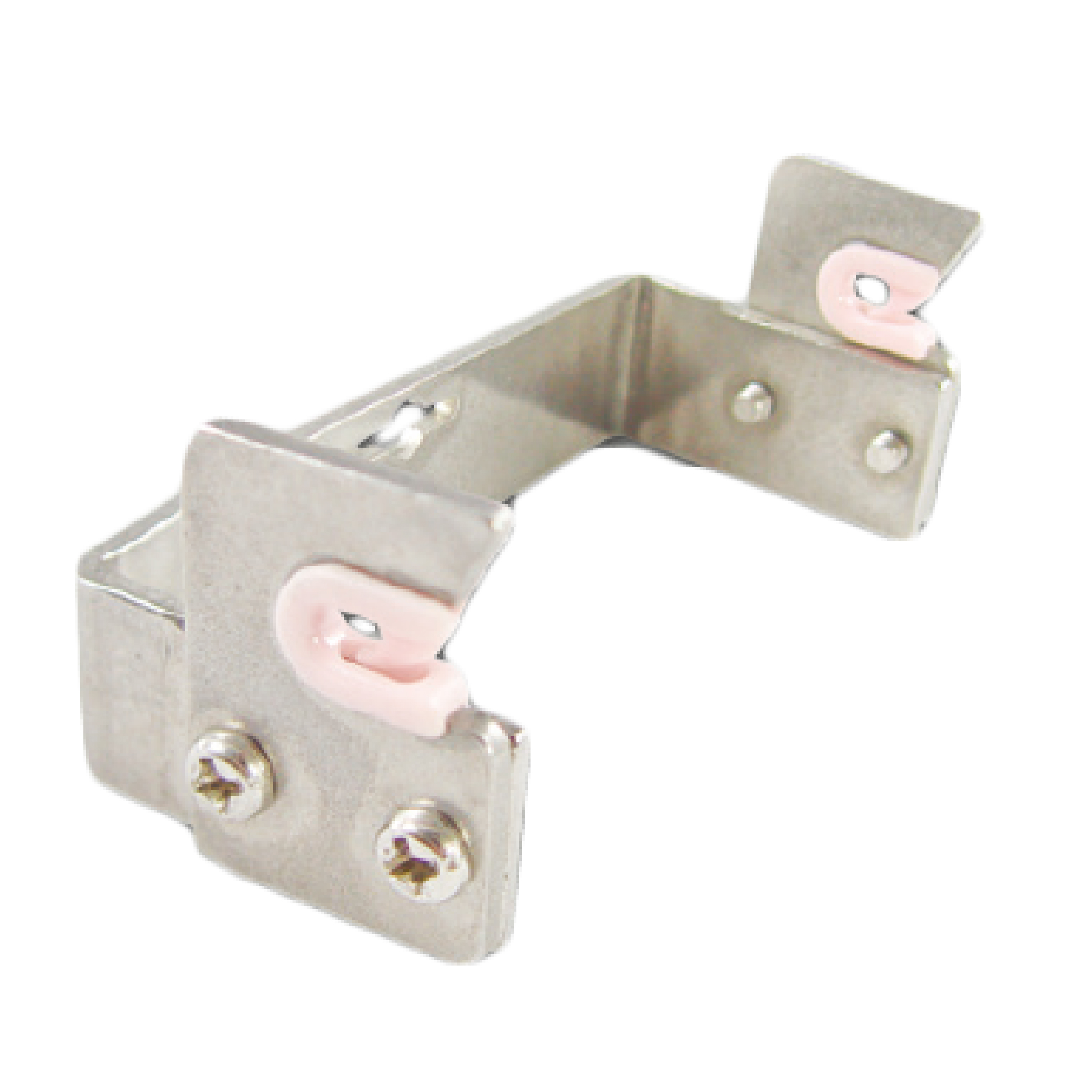

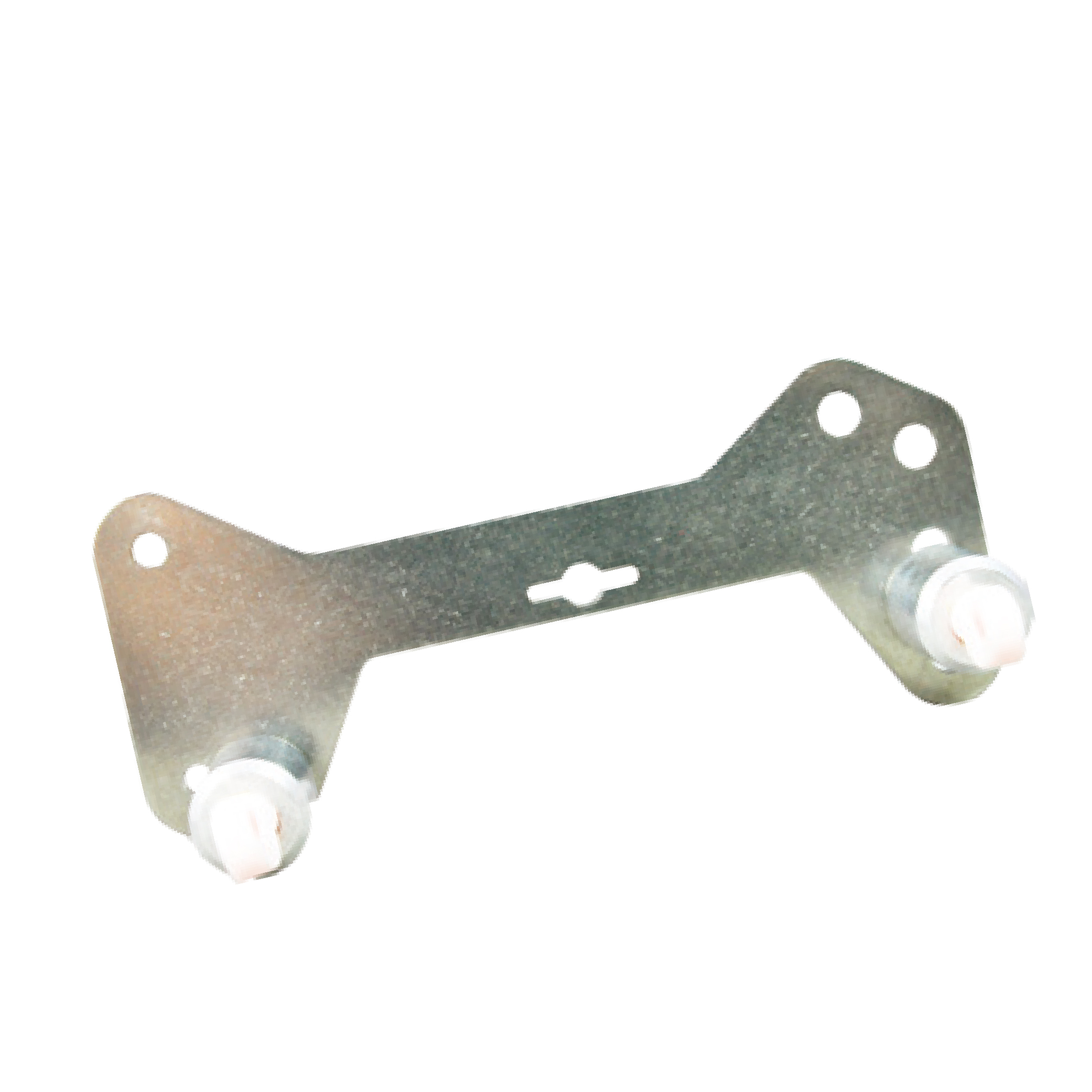

絲導有多種設計，可適合多種安裝位置。

Safe key included, to avoid insert pull out easily.

Simplicity of operation with open/closed type.

Insert is with precise manufacturing to ensure consistent quality.

Specification of orifice and channel could be customized.

With multiple guides for different requirements.

項目	多溝用 For multiple channels	單溝用 For single channel	Name	名稱
1	DH-J021T-01	DH-J021S⁺-01	SLIDING LEVER	活動掀蓋
2	DH-J021T-02	DH-J021S⁺-02	CLOSING LEVER	加壓桿
3	DH-J021T-03	DH-J021S⁺-03	PIN	掀蓋固定銷
4	DH-J021T-04	DH-J021S⁺-04	COMPRESSION SPRING	加壓彈簧
5	DH-J021T-05	DH-J021S⁺-05	PIN	加壓桿固定銷
6	DH-J021T-06	DH-J021S⁺-06	O-RING	主體O型環
7	DH-J021T-07	DH-J021S⁺-07	PIN	掀蓋固定桿
8	DH-J021T-08	DH-J021S⁺-08	HOUSING	主體
9	DH-J021T-09	DH-J021S⁺-09	IMPACT PLATE BASE	壓緊瓷板座

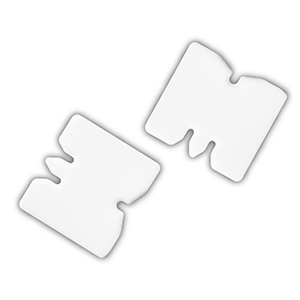

10	DH-J021T-10	DH-J021S⁺-10	IMPACT PLATE CERAMIC	壓緊瓷板
11	DH-J021T-11	DH-J021S⁺-11	JET INSERT	陶瓷噴嘴芯
12	DH-J021T-12	DH-J021S⁺-12	O-RING	滑板座O型環
13	DH-J021T-13	DH-J021S⁺-13	SLIDING BASE	滑板座
14	DH-J021T-14	DH-J021S⁺-14	TENSION DISC	華司
15	DH-J021T-15	DH-J021S⁺-15	SCREW	螺絲
